ElMod proportional cable for Fusion X tank module
ElMod proportional cable for Fusion X tank module For FusionX tank module to connect a proportional receiver. Scope of delivery: 1x proportional cable FusionX
ElMod FX Taigen Adapter

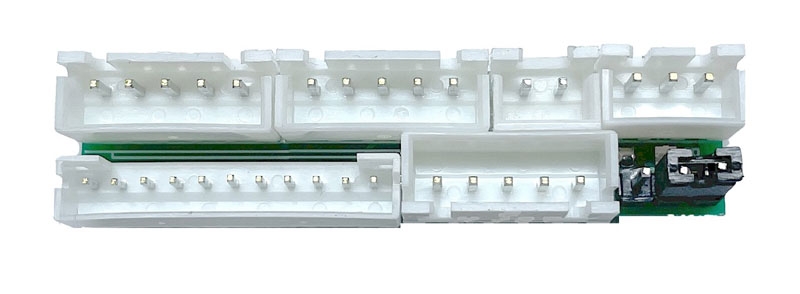

Elmod FX Taigen is an adapter board for Taigen tanks with 360 ° tower and standard mechanics, which are equipped with the Taigen Cannon Smoking Generator. With this product, the connection of such a model to ElMod FusionX is particularly easy. ELMOD FX Taigen is used to connect a thousand tank with 360 ° tower with standard mechanism and tapping gunmenschenerator to Elmod FusionX. scope of delivery Elmod FX Taige board for installation in the tower General Dimensions: 47mm x 11mm
Adapter for HengLong TK-6.x/7.x Tanks
This adapter is for an easy connector of a HengLong® tank which was originally equipped with the TK-6.x or TK-7.x electronics to an ElMod Fusion ECO or PRO. It provides appropriate connectors to the turret rotation motor, turret elevation motor, shot motor, main light and MG muzzle flash. Scope of delivery Adapter for use with an ElMod Fusion ECO or PRO central unit. (The pictured central unit is not included in the scope of delivery).
ElMod Adapter for Tamiya Tanks
Function This adapter is for an easy connector of a Tamiya® tank to ElMod central units. It is meant to be attached to the turret connector on an ElMod board. It provides appropriate connectors to the turret rotation motor, turret elevation motor, main light and MG muzzle flash of a Tamiya®tank. Not supported is the Tamiya® xenon muzzle flash. The connectors are labeled on the PCB. Scope of delivery Adapter for use with any ElMod central unit which is capable to control tank vehicles.
ElMod FX SBus
ElMod FX SBus The ElMod FX SBus is connected between an ElMod FusionX or ElMod 4WD and an SBus-compatible (D16 protocol) receiver. This allows the central unit to be controlled with up to 16 channels: Channels 1 to 4 for the basic functions (driving and turret) Channels 5 to 15 can be assigned a total of 44 functions (four functions per channel) Channels 5 to 7 are already preassigned (e.g. shot, MG, light, turn signal, starter). However, the assignment can be changed as desired. Channel 16 for an optional volume control The ElMod FX SBus cannot be used together with the ElMod FX Stabi. Scope of delivery ElMod FX SBus board General Very simple connection: just plug in a connector. The FX SBus is automatically detected by the central processing unit Hot plugin: connect and disconnect during operation Smallest dimensions (15 mm x 15 mm / 0.6" x 0.6") ElMod FX SBus is an adapter for connecting a SBus compatible receiver to an ElMod FusionX or ElMod 4WD central unit.
Fusion Adapter for Heng Long Battle Unit
Manual Fusion Adapter Fusion Adapter for Heng Long Battle Unit The HengLong / Taigen Battle System Adapter Set for the Think Tank merger allows the use of Henglong / Taigen Battle system in connection with the merger ElMod ECO and ElMod fusion PRO module. To ensure that all infrared combat functions of the fusion and fusion ECO PRO module can be used to the full extent and battles against vehicles that are equipped with a ElMod- or a Tamiya compatible system are discharged. requirements · A car model equipped with a supporting central unit (ECO ElMod merger or fusion ElMod PRO). · A HengLong / Taigen. delivery · Connection board for HengLong / Taigen sensor mushroom and infrared transmitter · LED ring for attachment to the sensor mushroom for the hit indicator
Fusion Adapter for HengLong TK-6.x-Battle Unit

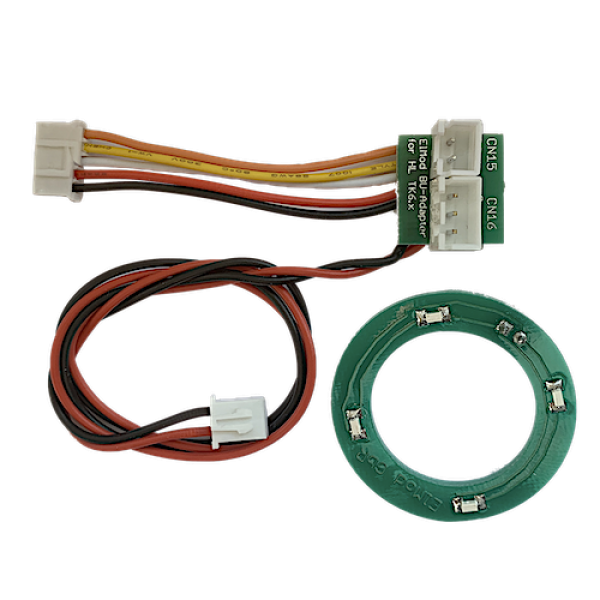

The HengLong® TK-6.x Battle System Adapter Set for the ThinkTank Fusion enables the use of the HengLong® TK-6.x Battle System in connection with the ElMod Fusion ECO / PRO or Fusion Puma module. This means that all infrared combat functions of the Fusion central units can be used to the full extent and battles can be fought against vehicles that are equipped with an ElMod or a Tamiya®-compatible system. requirements A vehicle model equipped with an ElMod Fusion central unit. A HengLong® TK-6.x model with battle option. scope of delivery Connection board for Taigen® TK-6.x sensor mushroom and infrared transmitter LED ring to attach to the sensor mushroom for the hit display
ElMod Fusion Smoker Board
Please click here for manual: Manual ElMod Fusion Smoker Board Function The Fusion Smoker Board provides the capability of using a smoker generator with separate terminals for heater and fan with an ElMod Fusion ECO/PRO Rev. A-E. The current ElMod Fusion ECO/PRO Rev. F doesn't require this board! Smoke generators which provides a single terminal for the heater and fan may be attached to the ElMod Fusion ECO/PRO Rev. A-E central unit directly. In this case this board is also not necessary! In the delivery condition the board may drive a smoke generator which consumes a maximum current of 0,7 Ampere (heater and fan together). With a simple wiring alternative a smoke generator with current consumption of 2,5 Ampere for the heater and 2,5 Ampere for the fan may be used. Requirements A vehilce equipped with a supported type of ElMod central unit (ElMod Fusion ECO/PRO Rev. A-E) and a suitable smoke generator with separate terminals for heater and fan (or pump). Scope of delivery ready to use board a piece of shrink tube 15 cm of insulated wire for high power smoke generators
ElMod Bluetooth

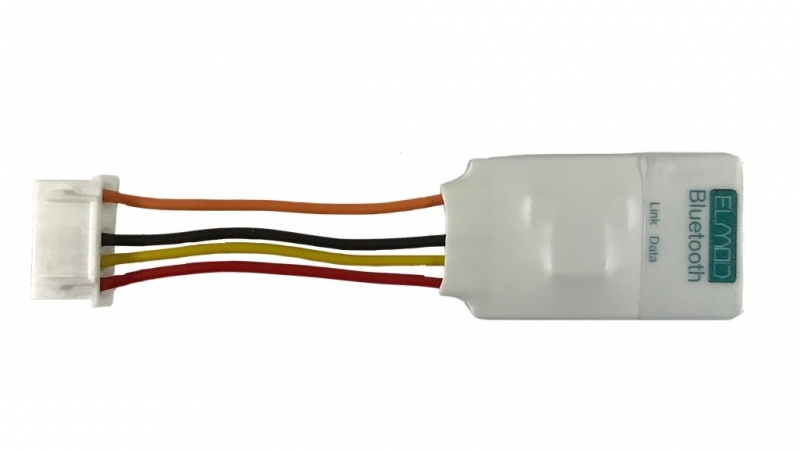

ElMod Fusion Bluetooth ElMod Fusion Bluetooth is an additional board for all ElMod Fusion central units. It enables the configuration and monitoring of the central unit as well as the control of the model via a Bluetooth® radio connection. This additional board is the wireless alternative for the USB connection, which is included in the ElMod Central Units package. Scope of delivery Ready for use board. Requirements An ElMod Fusion ECO/PRO or Fusion Puma with a current firmware (V2.xx). A computer or notebook with Microsoft® Windows® 10 or Apple® MacOS® (from version 10.10) Operating system with Bluetooth capabilities (e.g. via a USB stick or built-in hardware) A tablet or smartphone with Android ® 5.0.1 “Lollipop” or higher.
Blinker Board for ElMod Fusion PRO

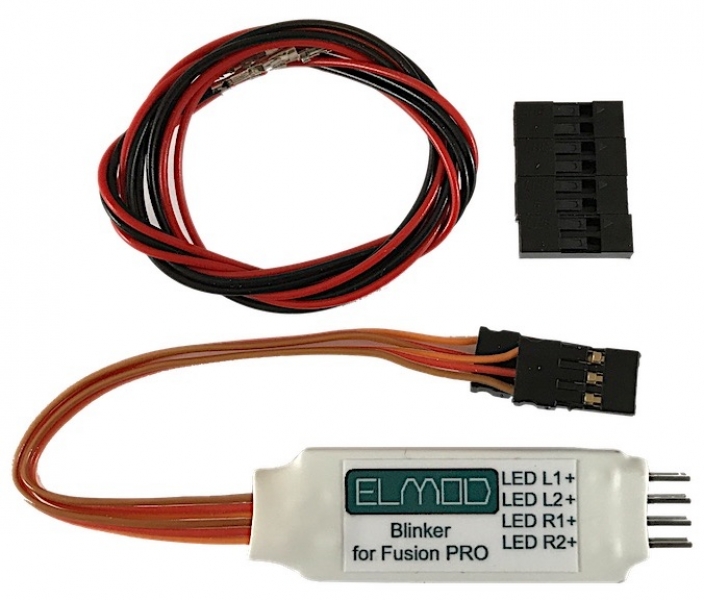

Manual Blinker Board Function The ElMod Blinker is an add-on for the ElMod Fusion PRO central unit. It provides the simulation of a blinker and a hazard lights with one or two LEDs per direction (more LEDs may be used by parallel connection) Scope of delivery ElMod Blinker for Fusion PRO ready to use board with two servo cables Wires and connectors for up to four LEDs Requirements an ElMod Fusion PRO with firmware version 1.09 or higher common LEDs in required quantity. No further electronic parts like dropping resistors are necessary. when using a common radio gear: a free channel with a 3-position switch (up-nuetral-down). Alternatively a slider or a rotary knob. a working USB or Bluetooth connection to the ElMod central unit for configuration
ElMod - FX gun smoke

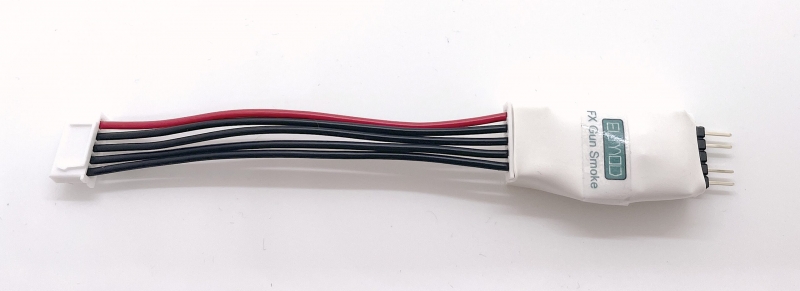

ElMod - FX gun smoke ElMod FX Gun Smoke connects to an ElMod Fusion central unit and controls the heater and pump of a gun smoke generator. This product is for HengLong® and Taigen® smoke generators. The circuit board is connected on the one hand to the muzzle flash connection of the ElMod Fusion central unit and on the other hand to the heater and the pump of the smoke generator. No further conversion or configuration is necessary. Any muzzle flash that may be present can still be used, since the muzzle flash connection on the ElMod FX Gun Smoke is looped through. scope of delivery ElMod FX Gun Smoke circuit board with connection cable General Dimensions: 31mm x 16mm
ElMod FX Battle
ElMod FX Battle ElMod FX Battle is an add-on to the ElMod FusionX central unit. It allows the use of an IR battle option from Tamiya®, HengLong® or Taigen®. This allows infrared battles to be fought between models equipped with a Tamiya® compatible battle system. Scope of delivery ElMod FX Battle board Connections Connector for a Tamiya Battle Unit® Two connectors for HengLong® TK6.x/TK7.x-compatible battle option One connector for Taigen® V1 Battleoption. For Taigen® V3 the sensor apple must be modified. This requires simple soldering work. General Very simple connection: just plug in a connector. The FX Battle is automatically detected by the central unit Hot plugin: connect and disconnect while running Smallest dimensions (30 mm x 18 mm / 1.2" x 0.7")
FX Expander
ElMod FX Expander ElMod FX Expander expands an ElMod FusionX or an ElMod 4WD to include turn signal functionality, three additional switchable light sources, and three servo connections. Scope of delivery ElMod FX Expander Board Six cables for connecting additional light sources Connectors 3x servo connector (with ElMod 4WD two usable) for multiple servo functions Steering with adjustable, speed-dependent steering angle Horizontal or vertical aiming of the main gun Barrel recoil simulation with separately adjustable retraction and extension speeds Hatch or wiper function to control moving parts of the model Servo reversal, separately adjustable left and right servo stop Indicator with two LEDs each for left or right turn signal. Warning flasher function. Two more switchable light channels with two LEDs per light channel Another switchable light channel for one LED Muzzle flash for an auxiliary MG (with ElMod 4WD: main MG) with adjustable flashing frequency Configurable state of the light channels after the vehicle is switched on By parallel or series connection of the LEDs, more than two or one LED per light channel can be connected General Very simple connection: just plug in a connector. The FX Expander is automatically detected by the central unit Hot plug-in: connect and disconnect during operation Compact dimensions (40 mm x 23 mm / 1.6" x 0.9")
Remote control 8 channel transmitter and receiver
Remote control 8 channel transmitter and receiver Very sensitive transmitter with 8 channels, 2.4 GHz Double Diversity (high reception quality) Features: All channels on the receiver already preinstalled Very many 3 - way switches 3 proportional turnpots Reversal functions and dip switch Full range thanks to 2 antennas USB port on the transmitter (e.g., charging function for USB devices) Trags included Scope of delivery: 8 channel transmitter 2.4GHz 8 channel receiver 2.4GHz USB cable Strap manual
ElMod 4WD
ElMod 4WD ElMod 4WD is a modern miniature central unit for all vehicles with one drive motor and servo steering. This central unit is designed for lightly armed military vehicles with a wheel drive or one-motor driven half-tracks. The universal central unit combines a variety of driving, lighting and sound functions in a compact board. With various expansion options you do not compromise and shape the range of functions according to your needs. Scope of delivery ElMod 4WD board Power supply cable One cable for the drive motor Cable set for analog receiver (eight channels + power supply) Volume control and connection cable for loudspeakers Four cables for the lighting USB dongle with USB cable Four double-sided adhesive foam rubber dots for fixing the board in the model Optional accessories FX Expander: servos, turn signals and advanced light functions FX SBus: Connects to SBus-compatible receivers. Allows up to 16 channels to be used. ElMod Bluetooth: configuration and driving functions via Bluetooth® Drive 10 A strong, short-circuit and overload protected driver for the drive motor Physics engine: realistic driving behavior by simulating mass inertia. The vehicle drives "like a big one". Acceleration, deceleration, top speed, gear shifting and many other characteristics are simulated. All driving parameters are adjustable Steering Steering via steering axe and a servo motor with optional speed-dependent steering traverse With optionally available FX Expander: Steering of up to two more individually configurable steering axes via servos with optional speed-dependent steering traverse Weapons With optional FX Expander: MG muzzle flash via LED with adjustable firing cadence Vertical and horizontal adjustment of the main gun with servo motors Shot sound of the main weapon Lighting One or two LEDs can be connected directly to all light channels. No further wiring is necessary. All light connections are short circuit proof. The LEDs can not be damaged in case of accidental polarity reversal. Dimmable front light that can be switched off via the remote control Combined tail light with brake light with separately adjustable brightness With optional FX Expander: Three additional freely assignable light channels Indicator with warning light function Servo functions With optional FX Expander: connect up to two servos for different functions, for example (list not complete): vertical and horizontal movement of the main gun control of additional steering axis Opening and closing of hatches Operating windshield wipers or radar Max. 2 A continuous current consumption for all servos together Sound generation and noise Support of all ElMod sample sets for extra prototypical sound reproduction Integrated sound unit plays several different sounds simultaneously Sound types drive Multiple starter sounds with distinction between cold and warm start Multiple shutdown and start-up sounds, engine sounds for driving with simulated gear changes and distinction between full load, part load, engine brake and mechanical brake. Turbocharger whistling No steps between engine sounds Speed-dependent driving sounds such as chain or chassis squeal Optional ambient and environmental noises Speed-dependent turret rotation noise with optional distinction between drive without and with motor assistance Sound for elevation of the main gun Fire from main gun optionally as single shot or continuous fire (e.g. flak) Variable sounds for bullet impact with simulation of impact at different distances Shooting noise for MG Up to 24 individual sounds that can be triggered via the radio system, such as horn, radio announcements, etc. Plain text announcement when battery voltage is too low/too high Configurable volume level of a noise type (e.g. raising the volume of the MG and lowering the volume of the engine) and configuration of multiple sound parameters Adjustment of the volume via an included rotary potentiometer Adjustment of the volume via a rotary knob on the remote control All included sample sets are stored on a PC/notebook-readable microSD card. They may be changed at runtime via the ElMod app. Integrated 10 W digital audio amplifier for connecting an 8 ohm speaker Control Analog receiver A commercial model remote control system (transmitter and receiver, 40 MHz or 2.4 GHz) Connection for up to eight channels Two channels for driving One channel for optional volume control A total of 20 additional functions can be assigned largely freely in addition to the basic functions The receiver requires no additional power supply. 5 V BEC are provided SBus Requires the optionally available FX SBus adapter. An SBus compatible model remote control system Use of up to 16 channels Simple wiring. Only one connector with three wires for power and all signals. Four channels for basic functions (driving, turret, weapons) One channel for optional volume control A total of 44 other functions can be distributed over 11 channels in addition to the basic functions The receiver does not require an additional power supply. 5 V BEC are provided Bluetooth / USB For wireless connection. Requires the optional Bluetooth adapter. Control conveniently on an Android smartphone or tablet or PC or notebook Configuration The free ElMod app provides extensive configuration options on the computer USB dongle with a USB cable is included Available for Microsoft® Windows® 10, Apple® MacOS® and Android® Parameterization, status information and control of all vehicle functions Individual vehicle profiles can be created and saved General Operation on NiCd, NiMh or LiPo, LiIon batteries with a voltage between 7.2 V and 11.2 V Undervoltage cutoff to protect against deep discharge Overvoltage shutdown All connectors of socketed type Included commercial 15A automotive fuse for drive protection Integrated resettable SMD fuse for protection of turret functions Compact dimensions (63 mm x 39 mm / 2.5" x 1.5")
ElMod FusionX

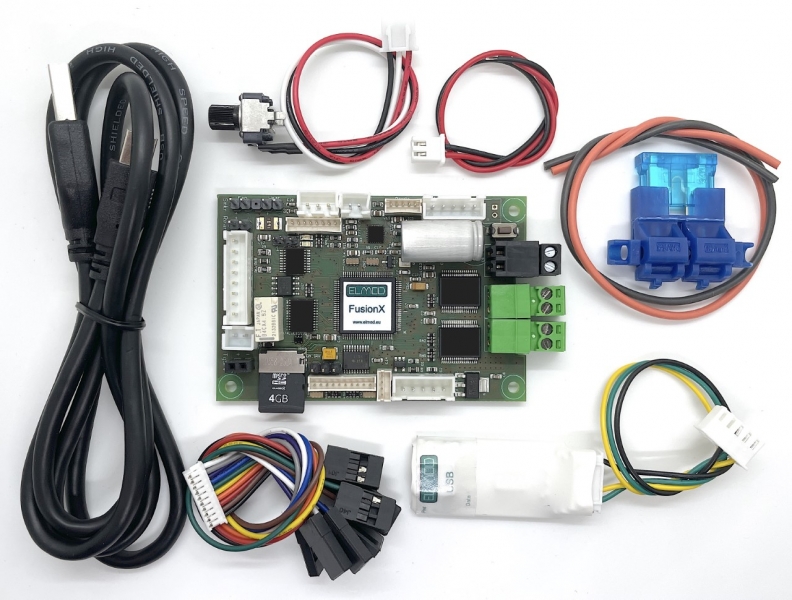

Description The universal central unit combines a variety of driving, lighting, weapons, and sound functions in a compact board. With various expansion options you do not compromise and shape the range of functions according to your needs. . Scope of delivery ElMod FusionX board Power supply connection kit (connector, cable, fuse holder and fuse) Two connector plugs for drive motors Cable set for analog receiver (eight channels + power supply) Volume control and connection cable for loudspeakers USB dongle with USB cable Four double-sided adhesive foam rubber dots for fixing the board in the model Optional accessories FX Expander: servos, turn signals and advanced light functions FX Battle: Connects to BU options from Tamiya, HengLong and Taigen FX SBus: Connects to SBus-compatible receivers. Allows up to 16 channels to be used. ElMod Bluetooth: configuration and driving functions via Bluetooth® TK6 adapter: Simplified connection of turret functions and lighting to HengLong® vehicles with TK6.x electronics Tamiya adapter: Simplified connection of turret functions and lighting to Tamiya® models Drive 2×15 A strong (2×30 A peak current), short-circuit and overload protected drivers for one or two drive motors Use of an overlay gearbox is possible Physics engine: realistic driving behavior by simulating mass inertia. The vehicle drives “like a big one”. Acceleration, deceleration, top speed, gear shifting and many other characteristics are simulated. All driving parameters are adjustable Steering Steering via chains with extensive adjustment options (Disableable) turning around the vertical axis (“Spin Turn”) For light models: integrated servo connection (max. 300mA) for steering via a steering axis with optional speed-dependent steering deflection. With optionally available FX Expander: Steering of up to three individually configurable steering axes via servos with optional speed-dependent steering traverse, even for heavy models. Turret functions and weapons . HengLong®/Taigen® compatible connector for turret assembly Optional available adapter for a Tamiya® turret assembly Fully proportional turret rotation via a motor with max. 1.5A current Fully proportional gun relevation via a motor with max. 1.5A current Control of a shot motor with max. 2A current Control of Tamiya® barrel recoil mechanism with separately adjustable retraction and extension speed Support for HengLong® and Taigen® barrel recoil mechanism with evaluation of the end position switch and synchronization with the firing sound Support for Taigen® servo electronics for barrel recoil (simple version) Support for Taigen® servo-equipped turret (elevation and shoot via servos) Simulation of barrel recoil via servo motor with separately adjustable retraction and extraction speed and adjustable traverse limit Connection for Taigen® xenon flash or HengLong® LED muzzle flash MG muzzle flash via LED with adjustable firing cadence Optional shot recoil simulation via adjustable jolt of the chassis With optional FX Expander: muzzle flash of a second MG with adjustable firing cadence (In preparation) With optional FX Stabi: 2-axis stabilization of the main gun on modern tanks Lighting One or two LEDs can be connected directly to all light channels. No further wiring is necessary. All light connections are short circuit proof. The LEDs can not be damaged in case of accidental polarity reversal. Dimmable front light that can be switched off via the remote control Combined tail light with brake light with separately adjustable brightness With optional FX Expander: Three additional freely assignable light channels Indicator with warning light function Servo functions Integrated connector for a 9g class servo (micro servo). Maximum current consumption approx. 300mA. With optional FX Expander: connect up to three servos for different functions, for example (list not complete): vertical and horizontal movement of the main gun control of a steering axis Opening and closing of hatches Operating windshield wipers or radar Max. 2 A continuous current consumption for all servos together Smoke function Supports a smoke unit for motor exhaust with load and motor noise dependent smoke output Optional connection of a simple smoker or a smoker with separate control for heating and fan Sound generation and noise Support of all ElMod sample sets for extra prototypical sound reproduction Integrated sound unit plays several different sounds simultaneously Sound types drive Multiple starter sounds with distinction between cold and warm start Multiple shutdown and start-up sounds, engine sounds for driving with simulated gear changes and distinction between full load, part load, engine brake and mechanical brake. Turbocharger whistling No steps between engine sounds Speed-dependent driving sounds such as chain or chassis squeal Optional ambient and environmental noises Speed-dependent turret rotation noise with optional distinction between drive without and with motor assistance Sound for elevation of the main gun Fire from main gun optionally as single shot or continuous fire (e.g. flak) Variable sounds for bullet impact with simulation of impact at different distances Shooting noise for MG Shooting noise for auxiliary MG Up to 24 individual sounds that can be triggered via the radio system, such as horn, radio announcements, etc. Plain text announcement when battery voltage is too low/too high Sounds for IR combat mode Configurable volume level of a noise type (e.g. raising the volume of the MG and lowering the volume of the engine) and configuration of multiple sound parameters Adjustment of the volume via an included rotary potentiometer Adjustment of the volume via a rotary knob on the remote control All included sample sets are stored on a PC/notebook-readable microSD card. They may be changed at runtime via the ElMod app. Integrated 10 W digital audio amplifier for connecting an 8 ohm speaker Control Analog receiver A commercial model remote control system (transmitter and receiver, 40 MHz or 2.4 GHz) Connection for up to eight channels Four channels for basic functions (driving, turret, weapons) One channel for optional volume control A total of 40 additional functions can be assigned largely freely in addition to the basic functions The receiver requires no additional power supply. 5 V BEC are provided SBus adapter. Requires the optionally available FX SBus An SBus compatible model remote control system Use of up to 16 channels Simple wiring. Only one connector with three wires for power and all signals. Four channels for basic functions (driving, turret, weapons) One channel for optional volume control A total of 44 other functions can be distributed over 11 channels in addition to the basic functions The receiver does not require an additional power supply. 5 V BEC are provided Bluetooth / USB For wireless connection. Requires the optional Bluetooth adapter Control conveniently on an Android smartphone or tablet or PC or notebook IR combat function Connects via an optional FX Battle adapter to either the Tamiya® BU apple, HengLong® or Taigen® Battle Option Simple configuration via a single button Vehicle type: light, medium, heavy Test mode responds to most infrared remotes to verify battle function Configuration The free ElMod app provides extensive configuration options on the computer USB dongle with a USB cable is included Available for Microsoft® Windows® 10, Apple® MacOS® and Android® Parameterization, status information and control of all vehicle functions Individual vehicle profiles can be created and saved General Operation on NiCd, NiMh or LiPo, LiIon batteries with a voltage between 7.2 V and 11.2 V Undervoltage cutoff to protect against deep discharge Overvoltage shutdown All connectors of socketed type Included commercial 15A automotive fuse for drive protection Integrated resettable SMD fuse for protection of turret functions Compact dimensions (76 mm x 50 mm / 3″ x 2″) [TAB:Sicherheitshinweise Elektronik]Sicherheitshinweise Elektronik
