1/16 Kit Puma
Sd. Kfz 234/2 Puma , Hitlerjugend Div. Frankreich 1944 Decal
Sd. Kfz 234/2 Puma , Hitlerjugend Div. Frankreich 1944 Sd. Kfz 234/2 Puma , Hitlerjugend Div. Frankreich 1944
Sd. Kfz 234/2 Puma , Windhund Div. Hürtgenwald 1944 Decal
Sd. Kfz 234/2 Puma , Windhund Div. Hürtgenwald 1944 Sd. Kfz 234/2 Puma , Windhund Div. Hürtgenwald 1944
Sd. Kfz 234/2 Puma , Panzerlehr Div. Frankreich 1944 Decal
Sd. Kfz 234/2 Puma , Panzerlehr Div. Frankreich 1944 Sd. Kfz 234/2 Puma , Panzerlehr Div. Frankreich 1944
Sd. Kfz 234/2 Puma , 20 Panzerdivision, Russland 1944 Decal
Sd. Kfz 234/2 Puma , 20 Panzerdivision, Russland 1944 Sd. Kfz 234/2 Puma , 20 Panzerdivision, Russland 1944
Springs MP21 for Puma SdKfz
Springs MP21 for Puma SdKfz 8x springs MP21 for the Puma Kit: wheel suspension Warnings Use under direct adult supervision only. Age recommendation: 14+ Not suitable for children under 36 months of age. Choking hazard due to small parts.
SdKfz 234/2 Puma Servo Lifting/Lowering
SdKfz 234/2 Puma Servo Lifting/Lowering Servo for the Lifting/Lowering for the SdKfz 234/2 Puma kit Details/Scope of Delivery: Servo Dead band: 2μs Working frequenz: 1520μs / 330hz Operating Speed (4.8V): 0.15sec/60° Operating Speed (6V): 0.12sec/60° Stall Torque (4.8V): 3.25kg.cm (45.14oz/in) Stall Torque (6V): 3.95 kg-cm (54.87 oz/in) Dimensions: 40.5X20.3X38mm Weight: 45.5 g (1.61oz) Connector Wire Length: JR 265 mm Warnings Use under direct adult supervision only. Age recommendation: 14+ Not suitable for children under 36 months of age. Choking hazard due to small parts.
SdKfz 234/2 Puma steering servo
Steering servo for the SdKfz 234/2 Puma kit. Metal Gear Servo. Details/Scope of Delivery: Metal Gear Servo Dead band: 7μs Working frequence: 1520μs / 50hz Operating Speed (4.8V): 0.18 sec/60° Operating Speed (6V): 0.16 sec/60° Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in) Stall Torque (6V): 20.32 kg-cm (281.89 oz/in) Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in Weight: 55.6 g (1.96oz) Connector Wire Length: JR 265 mm (10.43in) Bearing: 2BB Warnings Use under direct adult supervision only. Age recommendation: 14+ Not suitable for children under 36 months of age. Choking hazard due to small parts.
SdKfz 234/2 Puma steering servo waterproof
SdKfz 234/2 Puma steering servo waterproof Steering servo for SdKfz 234/ Puma from Puma kit. Metal Gear Servo, water proof Details/Scope of Delivery: Metal Gear Servo, water proof Dead band: 2μs Working frequenze 1520μs / 330hz Motor: Brush motor Operating Speed (4.8V): 0.18 sec/60° Operating Speed (6V): 0.16 sec/60° Stall Torque (4.8V): 16.5kg.cm Stall Torque (6V): 21.8kg.cm Dimensions: 40.5X20.2X38mm /1.59 X0.80X1.49 in Weight: 58g (2.04oz) Connector Wire Length: JR 265 mm (10.43in) Bearing: 2BB Warnings Use under direct adult supervision only. Age recommendation: 14+ Not suitable for children under 36 months of age. Choking hazard due to small parts.
Speakers for the PUMA kit 1:16
Speakers for the PUMA kit 1:16 (Only suitable for Puma kits Art.-No .: 2111608012) Scope of delivery / details: Loudspeaker incl. Box for Puma kit 2 watts - 8 ohms Warnings: DANGER: Use under the direct supervision of adults Minimum age: 14 years Age recommendation: from 14 years Not suitable for children under 36 months. Danger of suffocation due to small parts
Motor type 540 55T incl. Connection cable for the PUMA kit 1:16
1 x Motor type 540 55T incl. Connection cable for the PUMA kit 1:16 (Only suitable for Puma kits Art.-No .: 2111608012) Scope of delivery / details: Motor type 540 55T incl. Connection cable 50 x 2 turns Idle speed 8,400 rpm Power output 85 watts Operating voltage 7.2 -7.4 Size 540 Shaft length 12.3 mm Ø 3.18 mm 2 ball bearings Warnings: DANGER: Use under the direct supervision of adults Minimum age: 14 years Age recommendation: from 14 years Not suitable for children under 36 months. Danger of suffocation due to small parts
Ball bearings PP1 und PP2 for Puma SdKfz
Ball bearings PP1 und PP2 for Puma SdKfz 14x small PP1 ball bearings. 20x large PP2 ball bearings. Warnings Use under direct adult supervision only. Age recommendation: 14+ Not suitable for children under 36 months of age. Choking hazard due to small parts.
Gearbox for SdKfz 234/2 Puma Kit
Gearbox for SdKfz 234/2 Puma Kit 1x Gearbox with belt

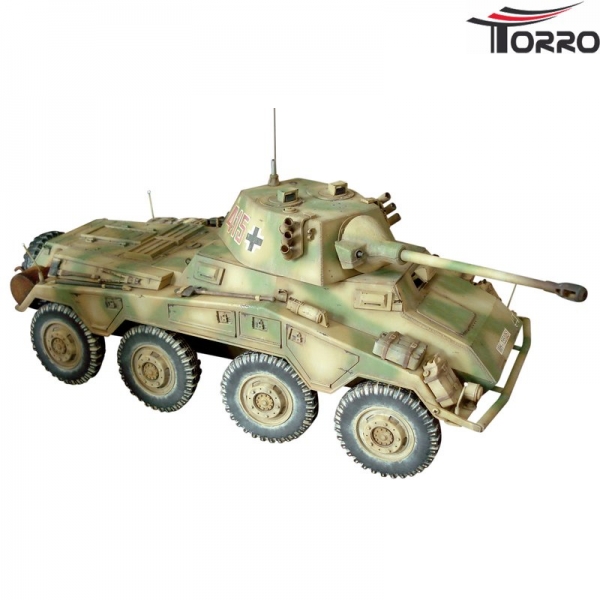

SdKfz 234/2 Puma kit 1:16
PUMA German Armored Vehicle Scale 1:16 Kit High quality Puma kit mostly made of metal with metal gear. The kit is supplied unpainted. The camouflage form as well as the geared motor on the detail pictures is not included in the delivery. File Download: Instruction manual V1.1 english Details / Contents: PUMA kit Metal basin Scale 1/16 8-wheel 4-wheel drive 8-wheel all-wheel steering Double wishbone suspension Car chassis made of metal Servo holder made of aluminum Axles, steering, gear box made of metal 16x ball bearing for the drive train 20x ball bearing for the steering Power Torque metal gear Photo etchings 8x rubber tires Measurements: approx. 446 x 158 x 154 (LxBxH mm) Weight: approx. 2.5 kg Optionally recommended accessories (not included) for the RC function or upgrade: 1x RC Controller Board ElMod FUSION PUMA 1x remote control 1x tower turning unit for SdKfz 234/2 Puma Art.-Nr .: 2111608019 1x 540 engines 8 pieces Puma Swing Shaft Warnings: DANGER: Use under the direct supervision of adults Minimum age: 14 years Age recommendation: from 14 years Not suitable for children under 36 months. Danger of suffocation due to swallowing
